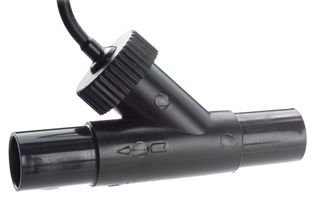

FS22A
Flow Switch, FS Series, 1.4 to 3.75 l/min, 22 mm Port Size, 10 bar, Normally Open, 15 VA, 240 Vac
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
더 이상 제조되지 않음
제품 정보
제조업체 부품 번호FS22A
주문 코드730890
Product RangeFS Series
기술 데이터 시트
Flow Switch TypeSPST
Flow Rate Min-
Flow Rate Max3.75l/min
Operating Pressure Min-
Operating Pressure Max10bar
Supply Voltage Min-
Supply Voltage Max-
Contact Rating600mA
Switching Voltage AC Max240V
Switching Voltage DC Max120V
Media TypeLiquid
Process Connection Size-
Process Connection Type-
Pipe Size-
Housing MaterialAcetal
Operating Temperature Min-20°C
Pressure Max10bar
Operating Temperature Max85°C
Product RangeFS Series
Qualification-
SVHCNo SVHC (25-Jun-2020)
Port Size22mm
제품 개요
The FS15 series Flow Switch is a reed switch based device which is manufactured in Acetal resin. This switch is designed for use in liquid flow systems up to 10bar reassure. Advanced design ensures minimal fluid flow restriction. The flow switch can be mounted horizontally or vertically. As the operating piston is returned to its original position by gravity the cap must always be upwards. Greater operate flow sensitivity is achieved with vertical installation.
- WRAS approval
- Temperature rated to 85°C (185°F)
애플리케이션
Sensing & Instrumentation, Industrial
기술 사양
Flow Switch Type
SPST
Flow Rate Max
3.75l/min
Operating Pressure Max
10bar
Supply Voltage Max
-
Switching Voltage AC Max
240V
Media Type
Liquid
Process Connection Type
-
Housing Material
Acetal
Pressure Max
10bar
Product Range
FS Series
SVHC
No SVHC (25-Jun-2020)
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
-
Contact Rating
600mA
Switching Voltage DC Max
120V
Process Connection Size
-
Pipe Size
-
Operating Temperature Min
-20°C
Operating Temperature Max
85°C
Qualification
-
Port Size
22mm
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90261089
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (25-Jun-2020)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.056
