BB52-PK5206B

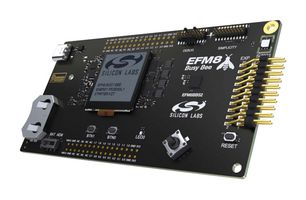

BB52-PK5206B is an EFM8 BB52 8bit MCU pro kit. It is an ideal starting point for application development on the EFM8BB52 8bit microcontroller family. The board features sensors and peripherals, demonstrating some of the many capabilities of the EFM8BB52 microcontroller. Additionally, the board is a fully featured debugger and energy monitoring tool that can be used with external applications.

• USB connectivity
• Advanced Energy Monitor (AEM) and SEGGER J-Link on-board debugger
• Debug multiplexer supporting external hardware as well as on-board MCU
• User push buttons and LEDs
• Silicon Labs' Si7021 relative humidity and temperature sensor
• Ultra-low power 128x128 pixel memory LCD
• 8-direction analogue joystick
• 20-pin 2.54mm header for expansion boards
• Breakout pads for direct access to I/O pins
• Power sources include USB and CR2032 coin cell battery

목차

1 x BB5x Pro board, Getting started card.
