페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
6 재고
더 필요하세요?
6 3-4 영업일 이내 배송(영국 재고)
수량 | 가격 |
---|---|
1+ | ₩199,504 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩199,504
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체SILVERTEL
제조업체 부품 번호EVALAG210
주문 코드4472721
기술 데이터 시트
Device TopologyConstant Current
No. of Outputs1Outputs
Output Current1A
Output Voltage12V
Input Voltage Min44V
Input Voltage Max57V
Core ChipAg210
Dimming Control TypeAnalogue, PWM
Kit ContentsEvaluation Board Ag210
Product Range-
SVHCNo SVHC (27-Jun-2024)
제품 개요

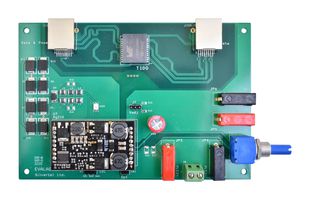

EVALAG210 is an Ag210 evaluation board intended for testing and evaluation of the performance of the Ag210 IEEE802.3bt POE LED driver module. This evaluation board will work with a suitable Type 3 or Type 4 bt Power sourcing equipment (PSE) that are capable of providing power over the spare pair and the data pair, such as the Ag6800 high-power PoE PSE module.
- Board is designed to handle 10/100/1000/10GBASE-T Ethernet data rates
- Ag210 pre-configured as type 3 class 6 PD, drawing 60W when connected via IEEE802.3bt compliant PSE
목차
Ag210 evaluation board, Ag210 PoE LED driver module.
기술 사양
Device Topology
Constant Current
Output Current
1A
Input Voltage Min
44V
Core Chip
Ag210
Kit Contents
Evaluation Board Ag210
SVHC
No SVHC (27-Jun-2024)
No. of Outputs
1Outputs
Output Voltage
12V
Input Voltage Max
57V
Dimming Control Type
Analogue, PWM
Product Range
-
기술 문서 (1)
법률 및 환경
관세 번호:84733020
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:추후 공고함
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (27-Jun-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
