155UE-USB4-DOCK

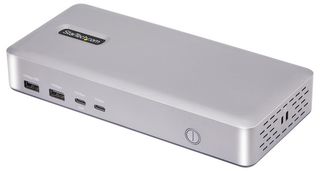

155UE-USB4-DOCK is a USB docking station. It delivers 40Gbps data transfer speeds, and improved bandwidth for video, making it ideal solution for high-performance computing & seamless device connectivity. It 2x HDMI 2.1 ports support dual 4K 60Hz or up to dual 4K 120Hz / single 8K 60Hz at 4:2:2, delivers direct GPU performance with no software or compression. Dock is compatible with Windows 11 (x64 and ARM), Windows 10 and ChromeOS. Optimal performance with Thunderbolt 4 and USB4 laptops, Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's. The secure 3.3ft (1m) USB-C locking cable for host port. Mounting holes available for optional mounting bracket, K-slot & Nano security slots, USB event monitoring, Mac Address Pass-Through with included Connectivity Tools software suite. It simplifies connections in work from home applications with a single cable for power, display, peripherals, making it easy to set up and break down workstations.

• 4K support and dual displays supported
• Supports fast-charge port(s)
• USB4 (40Gbps) interface and USB4 (40Gbps) bus type
• Compatible lock slot: Kensington standard slot (K-Slot), Kensington nano slot
• Power LED (white) indicator
• Wake On Lan, UASP support, PXE and full duplex support
• Type and rate: USB4 - 40Gbit/s and 10,000hours MTBF
• Supported charging outputs: BC 1.2 (1.5A), USB-C (20W)
• 100W power, 100 - 240V AC/ 2.5A I/P voltage/current, 20V DC/9A O/P voltage/current, M plug type
• 3 years warranty and operating temperature range from 0°C to 70°C (32F° to 158F°)

목차

Docking station, 3ft [1m] USB4 host cable, Universal power adapter (EU, UK), Quick-start guide.
