4P-SATA-M2-ADAPTER
Adapter Card, 4-Port M.2 to SATA Adapter Card, M.2 PCIe to SATA Expansion Card for HDD/SSDs

| 제조업체 | STARTECH |
|---|---|
| 제조업체 부품 번호 | 4P-SATA-M2-ADAPTER복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4632363 |
| AKA | GTIN UPC EAN: 0065030903745 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩81,580 |
제품 정보
| 제조업체 | STARTECH |
|---|---|
| 제조업체 부품 번호 | 4P-SATA-M2-ADAPTER복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4632363 |
| AKA | GTIN UPC EAN: 0065030903745 |
| 기술 데이터 시트 | |
| Accessory Type | Adapter Card |
| Drive Interface | PCI Express 3.0 (x4) |
| Product Range | - |
| SVHC | No SVHC (07-Nov-2024) |
제품 개요

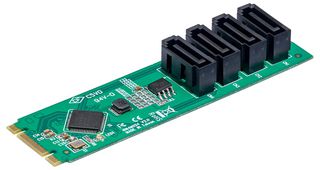

4P-SATA-M2-ADAPTER is a 4-port M.2 to SATA adapter card. Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot, maintaining SATA 6Gbps read/write speeds per drive. This setup can be used with modern motherboards or external enclosures that feature a PCIe-based M.2 slot, allowing for a cost-effective expansion of storage capabilities. Four 19.6-inch (50cm) SATA cables are included to connect the HDDs or SSDs for quick installation. The drivers auto-install in most major operating systems, including Windows 8 and later, macOS, and Linux. This adapter card is compatible with all hardware platforms, such as Intel and AMD, and supports software storage management, including Microsoft's storage spaces. This storage expansion card is ideal for data storage, backups, NAS setups, photographers, videographers, and content creation, where large storage capacity and reliability are required.
- Add 4x SATA drives to a desktop via a single 2280 M.2 drive slot
- Drivers auto-install in Windows 8 and up/macOS/Linux
- Supports TRIM and SMART data, SATA I/II/III and PCIe 3.0, includes 4x SATA cables
- Works in PCIe-based B or M-key M.2 slots, not compatible with SATA M.2 slots
- Supports software storage management (storage spaces)
- Maintain SATA 6Gbps read/write speeds per drive
메모
Note: Only compatible with PCI-Express B-key or M-key M.2 drive slots, Not compatible with SATA-based M.2 drive slots
기술 사양
| Accessory Type | Adapter Card |
|---|---|
| Product Range | - |
| Drive Interface | PCI Express 3.0 (x4) |
|---|---|
| SVHC | No SVHC (07-Nov-2024) |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Taiwan 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84718000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| SVHC: | No SVHC (07-Nov-2024) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .14 |
