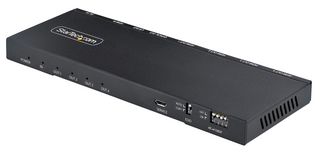

HDMI-SPLITTER-44K60S

High performance splitter with built-in scaler that distributes a HDMI video source across four separate displays. The splitter supports 4K resolution, High Dynamic Range (HDR) and 7.1 channel audio. The integrated scaler supports 2 different resolutions at the same time, making the splitter ideal for environments where there are a variety of displays in use.

• Supports resolutions up to 4K @60Hz with HDR and 4:4:4 chroma subsampling
• 7.1 Surround sound audio specification (2 channel on analogue outputs)
• 18Gb/s Maximum bandwidth
• Built-in scaler enables simultaneous output of 2 different resolutions
• Fully compliant with HDCP 2.2 and is backwards compatible with 1.4
• EDID management switch with copy function
• HDMI, 3.5mm and optical audio outputs for connection to speakers/amplifiers
• 5m Maximum cable length with passive cables, supports the use of active cables and extenders for longer distances
• Simultaneous audio output across all ports
• Durable metal enclosure with 8kV air and 4kV contact ESD protection
• Plug and play setup, no software or drivers required
• Dimensions (HxWxD): 14x180x62mm
• 2 Year manufacturer warranty

목차

Splitter, AC adaptor and user guide
