HSB100SATBK
Hot Swap Mobile Rack, 5.25in Trayless Hot Swap Mobile Rack for 3.5in SATA Hard Drive, TAA

| 제조업체 | STARTECH |
|---|---|
| 제조업체 부품 번호 | HSB100SATBK복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4291997 |
| AKA | GTIN UPC EAN: 0065030821360 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩49,141 |
| 5+ | ₩45,752 |
제품 정보
| 제조업체 | STARTECH |
|---|---|
| 제조업체 부품 번호 | HSB100SATBK복사 |
| 제조업체 표준 리드 타임 | 6주 |
| 주문 코드 | 4291997 |
| AKA | GTIN UPC EAN: 0065030821360 |
| 기술 데이터 시트 | |
| Accessory Type | 5.25" Trayless Hot Swap Mobile Rack |
| Drive Interface | SATA |
| Product Range | - |
| SVHC | To Be Advised |
제품 개요

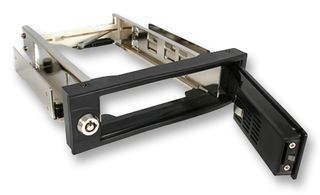

HSB100SATBK is a 3.5" SATA hard drive hot-swap bay. It allows users to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door, to re-insert a drive, simply insert the drive (connector first) until the door closes. The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, hot swap bay provides everything users need to expedite important projects while maintaining a reliable storage solution.
- Trayless design: drives are not mounted into separate trays/enclosures
- Lockable drive bay
- Internal rubber shock absorbers
- 50,000+ insertion rating
- Power and activity LED indicator
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Supports 3.5" form factor SATA hard drives
- Plug-and-play and hot-swap compatible
목차
1 x 5.25" tray-less SATA hot-swap bay, 2 x key, 1 x screw kit, 1 x instruction manual, 1 x drive activity LED and 2 pin wire.
기술 사양
| Accessory Type | 5.25" Trayless Hot Swap Mobile Rack |
|---|---|
| Product Range | - |
| Drive Interface | SATA |
|---|---|
| SVHC | To Be Advised |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84718000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | To Be Advised |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .261 |
