PEX2S953

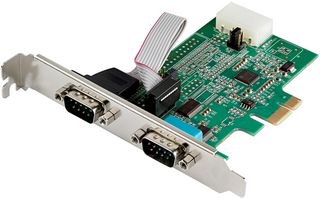

PEX2S953 is a 2-port PCI Express RS232 serial adapter card. This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems. This card is a direct replacement for PEX2S952.

• Compatible with industry standard 16950 UART
• Maximum data transfer rate of 921.6kb/s thanks to the ASIX AX99100 chipset
• Provides 5/12V power output on pin 9 (when external power is connected)
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• PCI-Express x1 interface
• Low and full-profile brackets included
• Supports Win 7/8/10, Linux 2.4-2.6.x (LTS only)
• 2 year manufacturer warranty and free lifetime technical support

목차

Serial card, LP brackets and user guide.
