SAT32M225

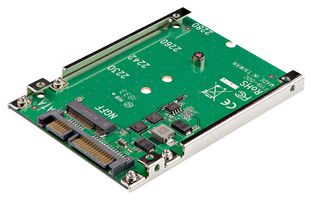

SAT32M225 is a M.2 SATA SSD to 2.5in SATA adapter. Increase system performance by adding the speed of an M2 SSD in any 2.5" SATA application with the M2 SSD to 2.5in SATA adapter. The open design maximizes heat dissipation to protect the health of your drive. The M2 to SATA converter supports full length M2 SDD solid state drives and is compatible with other sizes including: 2230, 2242, 2260, and 2280. Utilize the full potential of your SATA III controller with an M2 SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M2 hard drive adapter offers fast and easy setup with no drivers to install. It turns an unused M.2 (NGFF) drive into a regular 2.5in SATA solid state drive, retrieve/backup data from an M.2 (NGFF) drive with a standard SATA computer. It access M.2 (NGFF) drives from an external source, such as a SATA drive enclosure or docking station.

• Input voltage: 5V DC / 12V DC and 5V DC output voltage
• Drive connectors: M.2 (SATA, B-Key, NGFF), M.2 (SATA, B+M-Key, NGFF)
• Host connectors: SATA data & power combo (7+15 pin)
• Operating temperature range from -40°C to 85°C (-40°F to 185°F)

목차

M.2 NGFF SSD to 2.5in SATA SSD converter, Mounting screw kit, Installation manual.

메모

Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. OS independent, no software or drivers required.
