제품 개요

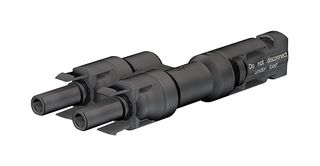

The 32.0018+32.0019 is a cable-mount Branch Socket with tin-plated copper contacts and crimp contact termination. The power entry connector is suitable for safe and simple connection of PV modules. It is pluggable with single-pole MC PV-cable coupler MC4 and the unmated connections must be protected by sealing caps.
- PC insulation
- UL94V-0 Flammability rating
- Snap-in locking system
- IP67 Mated and IP2X unmated protection rating
- Cable CSA: 2.5mm² to 4mm²
애플리케이션
Industrial, Power Management
기술 사양
Photovoltaic / Solar Connector Type
Female Cable Coupler
Connector Mounting
Cable Mount
Wire Size AWG Max
10AWG
Voltage Rating
1kV
SVHC
No SVHC (23-Jan-2024)
Keying
-
IP Rating
IP67
Current Rating
30A
Product Range
MC4
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:France
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (23-Jan-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.13
