| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | B-WL5M-SUBG1복사 |
| 제조업체 표준 리드 타임 | 25주 |
| 주문 코드 | 4312898 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
6 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩89,740 |
제품 정보
| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | B-WL5M-SUBG1복사 |
| 제조업체 표준 리드 타임 | 25주 |
| 주문 코드 | 4312898 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+, Cortex-M4 |
| Silicon Core Number | STM32WL55JC |
| Silicon Family Name | STM32 |
| For Use With | STMicroelectronics STM32 Family Development Boards |
| Kit Contents | Expansion Board STM32WL55JC |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요

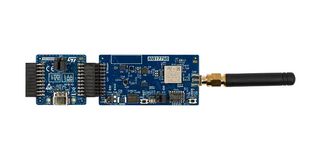

B-WL5M-SUBG1 is a connectivity expansion board with STM32WL5MOC module. The B-WL5M-SUBG1 STM32WL connectivity expansion board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32WL series STM32WL5MOC microcontroller module. The product requires a separate probe for programming and debugging. The STLINK-V3SET debugger can be connected through a MIPI10/STDC14 cable. STM32WL connectivity expansion board is provided with a USB Type-C® connector on an add-on STMod+ adapter board. This product is provided with the STM32WL comprehensive software HAL library and various packaged software examples available with the STM32CubeWL MCU package.
- 4‑Mbit CMOS serial flash memory and 256‑Kbit serial I2C bus EEPROM
- Three user LEDs, User and reset push-buttons
- Board connectors: MIPI® debug, STMod+, Stubby antenna
- Board connectors: USB Type-C for power only on the add‑on STMod+ adapter board
- Flexible power supply options, external sources, or USB VBUS from the add‑on board
- Support of a wide choice of IDEs, including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
- User and reset push-buttons
기술 사양
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Core Sub-Architecture | Cortex-M0+, Cortex-M4 |
| Silicon Family Name | STM32 |
| Kit Contents | Expansion Board STM32WL55JC |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | ARM |
|---|---|
| Silicon Core Number | STM32WL55JC |
| For Use With | STMicroelectronics STM32 Family Development Boards |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733080 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .080921 |
