페이지 인쇄
이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.

| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | EVAL-L99ASC03복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 2855561 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
2 재고
더 필요하세요?
2 3-4 영업일 이내 배송(영국 재고)
| 수량 | 가격 |
|---|---|
| 1+ | ₩479,126 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩479,126
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | EVAL-L99ASC03복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 2855561 |
| 기술 데이터 시트 | |
| Application Sub Type | Sensorless BLDC Motor Control |
| Silicon Manufacturer | STMicroelectronics |
| Kit Application Type | Drivers |
| Silicon Core Number | L99ASC03 |
| Kit Contents | Eval Board L99ASC03 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요

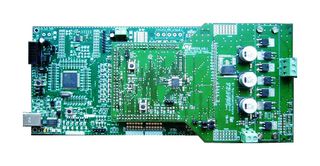

Evaluation-board for L99ASC03G sensorless three-phase pre-driver BLDC motor control. It's composed by a mother-board and a daughter-board on which is pre-assembled the L99ASC03. The system features an enhanced power management power supply functionalities including various standby modes.
- Driver & power two separated and signal shielded stages
- ISO pulse protection (not soldered)
- Reverse polarity protection available on each battery voltage input: Vs, VSREG, power stage
- Current reference comparator
- PCB temperature sensor
- Hall sensors connector and conditioning circuit
- INH_wake-up button
- Microcontroller configured to be supplied by L99ASC03 5V LDO
- Flash mode configurable
- Compatible with external power boards
기술 사양
| Application Sub Type | Sensorless BLDC Motor Control |
|---|---|
| Kit Application Type | Drivers |
| Kit Contents | Eval Board L99ASC03 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Silicon Core Number | L99ASC03 |
| Product Range | - |
기술 문서 (1)
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .02 |
