| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | EVAL-L99H02XP복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 3886284 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩149,889 |
제품 정보
| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | EVAL-L99H02XP복사 |
| 제조업체 표준 리드 타임 | 28주 |
| 주문 코드 | 3886284 |
| 기술 데이터 시트 | |
| Application Sub Type | DC Motor |
| Silicon Manufacturer | STMicroelectronics |
| Kit Application Type | Power Management - Motor Control |
| Silicon Core Number | L99H02XP |
| Kit Contents | Evaluation Board L99H02XP |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요

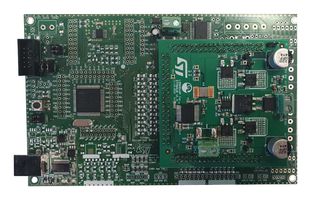

Evaluation board for L99H02XP DC motor control IC in automotive applications. It is composed by a motherboard and a daughterboard on which the L99H02XP is pre-assembled. The motherboard, based on STM8A microcontroller, provides the logic section for monitoring and driving the L99H02XP assembled in the daughterboard. ST provides a dedicated user-friendly software with a Graphic User Interface (GUI) with the aim to make the board usage and settings simpler. This enables the user to set L99H02XP parameters and registers, simultaneously showing real-time device diagnostic information like motor evolution, free-wheeling, board temperature and much more.
- Operating supply voltage from 6V to 28V
- Central 2 stage charge pump 100% duty cycle
- Full RDSon down to 6V (normal level MOSFETs)
- Control of reverse battery protection MOSFET
- Charge pump current limited
- PWM operation up to 30KHz
- SPI interface
- Current sense amplifier/free configurable
- Zero adjust for end of line trimming
- Sensing circuitry of external MOSFETs with embedded thermal sensors
기술 사양
| Application Sub Type | DC Motor |
|---|---|
| Kit Application Type | Power Management - Motor Control |
| Kit Contents | Evaluation Board L99H02XP |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Silicon Core Number | L99H02XP |
| Product Range | - |
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .000038 |
