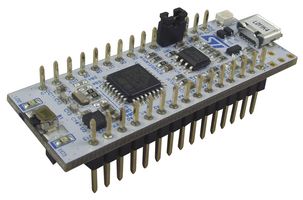

NUCLEO-L011K4

The NUCLEO-L011K4 is an STM32 Nucleo-32 Development Board with STM32L011K4 microcontroller which provides a flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The Arduino™ Nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields. The board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as direct access to the ARM®mbed™on-line resources.

• STM32L011K4T6 microcontroller in an LQFP32 package
• ST-LINK/V2-1 debug/programmer tool on-board
• ARM® mbed Enabled™
• USB Functions: Debug port, Virtual COM port, Mass Storage
• Three LEDs: USB comms, power, user configurable
• Reset push-button
• Arduino Nano compatible expansion headers
• Supported by a wide range of IDEs (Integrated Development Environments)
• STM32 comprehensive software HAL library

애플리케이션

Consumer Electronics, Embedded Design & Development, Portable Devices, Hobby & Education
