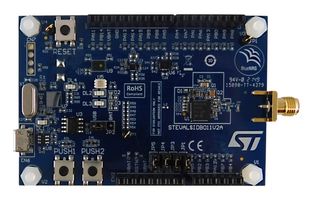

STEVAL-IDB011V2

STEVAL-IDB011V2 evaluation platform is designed to help you to develop and test Bluetooth® low energy applications using the BlueNRG-LP low-power system-on-chip in combination with inertial and environmental MEMS sensors, a digital MEMS microphone, various interface buttons and LEDs. The BlueNRG-LP features a 64MHz, 32bit Arm®Cortex®-M0+core, a 256KB programmable flash memory, a 64KB SRAM an MPU and an extensive peripheral set. It is compliant with the Bluetooth® LE specification. It features data length extension, 2Mbps, long range, extended advertising and scanning, as well as periodic advertising, periodic advertising sync transfer, LE L2CAP connection-oriented channel, and LE power control and path loss monitoring. Serial communication with a PC and three power options (USB only, battery only, external power supply) allow complex application development and testing flexibility.

• Bluetooth® low energy evaluation board based on the BlueNRG-LP BLE SoC (QFN48 package)
• Associated BlueNRG-LP development kit s/w package (STSW-BNRGLP-DK) includes firmware &documentation
• Up to +8dBm programmable output power (at the antenna connector)
• Excellent receiver sensitivity (-96dBm at 1Mbps, -103dBm at 125bps long range)
• Very low power consumption: 3.4mA RX at sensitivity level, and 4.3mA TX at +0dBm
• Bluetooth low energy data length extension
• SMA connector for antenna or measuring equipment, Arduino R3 connectors
• Three user LEDs and two user buttons
• MEMS digital accelerometer/gyroscope, pressure/temperature sensor, microphone
• Training kit with daughter amplifier and comparator board
