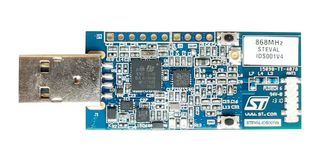

STEVAL-IDS001V4

Demonstration board is based on the SPIRIT1, which is a sub-GHz low power, low data-rate transceiver suitable for ISM bands and wireless M-BUS. The board is equipped with an STM32L low power microcontroller to control the SPIRIT1. The board also features a USB connector for PC GUI interaction and firmware update. An optional JTAG connector (not mounted) allows the development of specific firmware on the microcontroller.

• External components tuned for 868MHz band
• Suitable for wireless M-BUS systems
• SPI interface for microcontroller
• USB interface, air data rate from 1 to 500Kbps
• 2-FSK, GFSK, MSK, GMSK, OOK and ASK modulation schemes
• Very low power consumption (9mA RX and 21mA TX at +11dBm)
• Excellent receiver sensitivity performance (up to -118dBm)
• Low duty cycle RX/TX operation mode
• Automatic acknowledgement, retransmission and timeout protocol engine
• AES 128bit encryption co-processor
