STEVAL-ISA081V1

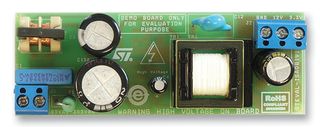

STEVAL-ISA081V1 is a 12V /1A SMPS wide range demonstration board based on VIPER26. The STEVAL-ISA081V1 demonstration board is a switched mode power supply (SMPS) demonstration board and it is an isolated SMPS capable of delivering a 12W output over a wide input voltage range. It is designed for a mains application focusing on cost and size effective solutions. The STEVAL-ISA081V1 SMPS generates 12V nominal output voltage using primary regulation and it is based on the VIPER26 monolithic converter, integrating a high voltage MOSFET and PWM controller in one package.

• Vin range from 85 to 305Vrms
• Frequency range from 45 to 66Hz
• Vout1: 12V DC +/- 10%, 1A (at 3.3V not loaded)
• Vout2: 3.3V DC +/- 4%, 100mA
• Maximum total output current is 1A
• Standby is less than 120mW at 230V AC
• Short-circuit protected
• PCB: FR4 single-side 35µm, 32 x 90mm
• Isolation: 4kV / 8mm
• EMI: according to EN55022 Class
