STEVAL-LLL001V1

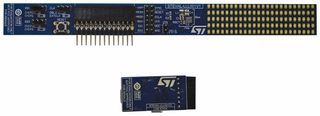

The STEVAL-LLL001V1 from STMicroelectronics is STLED524 evaluation kit with 5 x 24 matrix LED display driver incorporated on the board. This board is designed to demonstrate the features of the STLED524 intelligent matrix LED display driver. The board is driven by the USB control board for interface with the graphical user interface (GUI) but there is also an SPI interface connector on the STEVAL-LLL001V1 which can be used for customized control. Two boards can also be joined using the on-board connectors to drive a 10 x 24 LED matrix.

• Operating input voltage from 2.7V to 5.5V
• Drives 5 x 24 LED matrix
• Luminance separately adjustable for each LED by internal registers in 255 steps
• Internal registers capable of storing two patterns
• 4-way scroll function with a possibility to lock column data
• 255-step PWM dimming
• SPI interface
• Integrated step-up converter with adjustable output voltage
• Integrated LDO with 3.1V output at 80mA
• CSP 56 bumps 0.4mm pitch 3.4mm x 3mm
