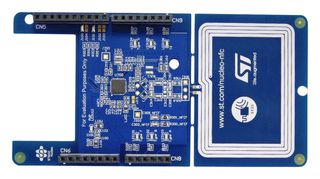

X-NUCLEO-NFC09A1
Expansion Board, ST25R100, ST25 Family, NFC Card Reader, STMicroelectronics STM32 Nucleo Boards

| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | X-NUCLEO-NFC09A1복사 |
| 제조업체 표준 리드 타임 | 40주 |
| 주문 코드 | 4547826 |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
32 지금 제품을 예약하실 수 있습니다
| 수량 | 가격 |
|---|---|
| 1+ | ₩46,617 |
제품 정보
| 제조업체 | STMICROELECTRONICS |
|---|---|
| 제조업체 부품 번호 | X-NUCLEO-NFC09A1복사 |
| 제조업체 표준 리드 타임 | 40주 |
| 주문 코드 | 4547826 |
| 기술 데이터 시트 | |
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | ST25R100 |
| Silicon Family Name | ST25 |
| For Use With | STMicroelectronics STM32 Nucleo Boards |
| Kit Contents | Expansion Board ST25R100 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
제품 개요
X-NUCLEO-NFC09A1 is a NFC card reader expansion board based on ST25R100 for STM32 Nucleos. The X-NUCLEO-NFC09A1 NFC card reader expansion board is based on the ST25R100 device. The expansion board is configured to support ISO14443A/B, ISO15693. The ST25R100 manages frame coding and decoding in reader mode for standard applications, such as NFC, proximity, and vicinity HF RFID standards. It supports ISO/IEC 14443 type A/B and ISO/IEC 15693 RF communication protocols as well as the detection, reading and writing of NFC Forum type 1, 2, 4, and 5 tags. It embeds a low power wake-up system capable of detecting an approaching tag. It also features a low power RC oscillator and wake-up timer to wake up the device automatically after a selected time period and check for a tag presence.
- On-board NFC card reader IC: ST25R100
- 47mm x 34mm, four turns, 13.56MHz inductive antenna etched on PCB and associated tuning circuit
- Six general-purpose LEDs
- ISO 14443A and ISO14443B, ISO 15693
- Possibility of driving two antennas in single-ended configuration
- Equipped with Arduino UNO R3 connector
- Free comprehensive development firmware library compatible with STM32Cube and samples for ST25R100
- Scalable solution for multiple board cascade
기술 사양
| Silicon Manufacturer | STMicroelectronics |
|---|---|
| Core Sub-Architecture | - |
| Silicon Family Name | ST25 |
| Kit Contents | Expansion Board ST25R100 |
| SVHC | No SVHC (25-Jun-2025) |
| Core Architecture | - |
|---|---|
| Silicon Core Number | ST25R100 |
| For Use With | STMicroelectronics STM32 Nucleo Boards |
| Product Range | - |
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Italy 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .0003 |
