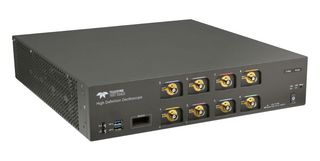

T3DSO4058L-HD
PC USB Oscilloscope, T3DSO4000L-HD Series, 8 Analogue, 500 MHz, 10 GSPS, 500 Mpts, 550 ps

| 제조업체 | TELEDYNE LECROY |
|---|---|
| 제조업체 부품 번호 | T3DSO4058L-HD복사 |
| 제조업체 표준 리드 타임 | 1주 |
| 주문 코드 | 4656619 |
| Product Range | T3DSO4000L-HD Series |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩75,056,279 |
제품 정보
| 제조업체 | TELEDYNE LECROY |
|---|---|
| 제조업체 부품 번호 | T3DSO4058L-HD복사 |
| 제조업체 표준 리드 타임 | 1주 |
| 주문 코드 | 4656619 |
| Product Range | T3DSO4000L-HD Series |
| 기술 데이터 시트 | |
| Product Range | T3DSO4000L-HD Series |
| Scope Channels | 8 Analogue |
| Bandwidth | 500MHz |
| Sampling Rate | 10GSPS |
| Display Memory Depth | 500 Mpts |
| Calculated Rise Time | 550ps |
| Kit Contents | HDO, 500MHz, Passive Probe, USB Cable, Power Cord, Wireless Mouse, Start Guide, Cal, Rack Mount Kit |
| Manufacturer Warranty | 3 Years |
| Plug Type | - |
| SVHC | No SVHC (21-Jan-2025) |
제품 개요
T3DSO4058L-HD is a low profile oscilloscope featuring 8-channel (2U High) model with analogue bandwidth of 500MHz. The low profile form factor combined with 12bit high resolution ADCs and low noise front end provides an impressive noise performance to cover a wide range of measurement applications. Each model offers a maximum sample rate of 10GS/s per channel and a maximum memory depth of 500Mpts. It can be remotely controlled over LAN with its built-in web server and a complete SCPI command set over the standard 1000M LAN connection. An impressive display of measurement and math functions along with a built-in 25MHz arbitrary waveform generator and 16 channel logic analyser as standard are features of the T3DSO4000L-HD.
- Segmented acquisition mode, dividing the maximum record length into multiple segments (up to 80,000)
- History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
- Intelligent trigger: edge, slope, pulse, window, runt, interval, dropout, pattern, Nth edge
- Serial bus triggering and decoder (I2C, SPI, UART, CAN, LIN, FlexRay, I2S, MIL-STD-1553B, SENT)
- 9 basic math functions plus FFT and 50+ automatic measurement parameters
- Search, navigate, digital voltmeter, counter, waveform histogram, power and eye/jitter analysis
- Interfaces include: 4x USB hosts, USB device, 1000M LAN, micro SD card, pass/fail, trigger out, HDMI
- Built-in web server supports remote control over the LAN port using a web browser
- Supports SCPI remote control commands, supports external mouse and keyboard
- Dimension is 391mm x 86mm x 421mm
목차
Oscilloscope, Passive probe 1/CH, USB cable, Power cord, Wireless mouse, Quick start guide, Certificate of calibration, Rackmount kit.
기술 사양
| Product Range | T3DSO4000L-HD Series |
|---|---|
| Bandwidth | 500MHz |
| Display Memory Depth | 500 Mpts |
| Kit Contents | HDO, 500MHz, Passive Probe, USB Cable, Power Cord, Wireless Mouse, Start Guide, Cal, Rack Mount Kit |
| Plug Type | - |
| Scope Channels | 8 Analogue |
|---|---|
| Sampling Rate | 10GSPS |
| Calculated Rise Time | 550ps |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (21-Jan-2025) |
기술 문서 (1)
관련 제품
8개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | China 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 90302000 |
| US ECCN: | 3A992.g |
| EU ECCN: | NLR |
| RoHS 준수: | 추후 공고함 |
| RoHS 프탈레이트 준수: | 추후 공고함 |
| SVHC: | No SVHC (21-Jan-2025) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .000001 |
