T3EL150303P

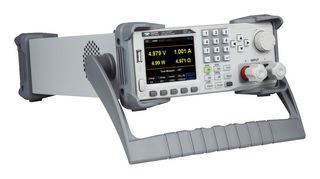

T3EL150303P is a single channel, 150V/30A 300W programmable DC electronic load. It has a 3.5inch TFT-LCD display, a user-friendly interface and superb performance specifications. The T3EL15030xP series delivers stability over a wide range of applications and can meet all kinds of testing requirements including: power, battery/handheld device design, industry, LED lighting, automotive electronics and aerospace.

• 4 static modes/dynamic mode: CC/CV/CR/CP and CC dynamic mode: continuous, pulsed, toggled
• Measuring speed of voltage and current: up to 500KHz
• Short-circuit, Battery test, CR-LED mode, and factory test functions
• 4-wire SENSE compensation mode function
• List function supports editing as many as 100 steps and program function supports 50 groups of steps
• OCP, OVP, OPP, OTP and LRV protection
• External analogue control
• Built-in RS232/USB/LAN communication interface
• Waveform trend chart and ease-to-use file storage and call functions
• Includes PC software: supports SCPI, LabView driver

목차

DC electronic load, USB cable, Quick start, Calibration certificate, Power cord.
