00961000

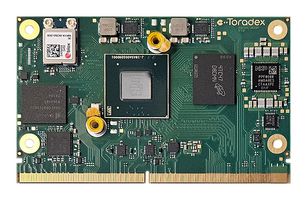

00961000 is a SMARC iMX95 Hexa 8GB WB IT V1.0A system on module (SoM) (Initial Release). The Toradex SMARC Family brings the trusted, well-known Toradex quality, reliability, and ease-of-use to the SMARC (Smart Mobility Architecture) standard. The Toradex SMARC Module is built according to the latest SMARC 2.2 and is compatible with most SMARC 2.1/2.0 carrier boards. As a standard designed to accommodate a wide range of ARM and x86 Systems-on-Chip, SMARC made trade-offs to prioritize broad compatibility over cost, size, and performance. The SMARC i.MX95 is a versatile System-on-Module (SoM) designed to cater to a diverse array of applications, including but not limited to industrial automation, medical, transportation, smart cities, test and measurement and more.

• i.MX95 MIMX9596 SoC, features Crypto, eFuse key storage, secure boot, secure clock, tamper detection
• 1.8GHz, 6x A55 cores, 800MHz M7 Cores, 333MHz M33 cores 256kB with ECC OCRAM
• Arm Mali-G310 GPU model features 2D and 3D acceleration, 1.3 Vulkan
• Interface: 2x I2S, 1x Quad Lane MIPI® CSI-2, 2x CAN-FD, 5x I²C, 3x PWM, 2x SPI, 4x UART
• Network: BT 5.2, 2x Gigabit, 1x10-Gigabit Ethernet, 2.4/5 GHz dual band 1x1 Wi-Fi 6 (802.11ax)
• 1x SD/SDIO/MMC storage
• 32GB 2D MLC eMMC, 2kbit (256 × 8bits) I2C EEPROM
• 8GB LPDDR5 RAM with 32-bit dual channel (1×2×16) Configuration and 6400MT/s RAM Speed, Inline ECC
• 82.0 x 50mm size and temperature range from -40°C to 85°C
• Shock /Vibration: EN 60068-2-6/50g 20ms and TBD power dissipation
