제품 정보
제조업체GEDORE
제조업체 부품 번호CRS 100-0022 FH
주문 코드2496132
AKA015089
기술 데이터 시트
Torque Tool StyleScrewdriver
Torque Range ft-lb6in-oz to 32in-oz
Torque Range N-m4cN-m to 22cN-m
Drive Size - Metric6.35mm
Drive Size - Imperial0.25"
Overall Length104mm
Product Range-
SVHCNo SVHC (21-Jan-2025)
제품 개요

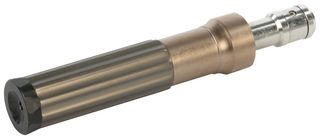

The CRS 100-0022 FH is a 1/4-inch grey Screwdriver Torque designed to protect precision products from contamination during assembly. It is designed specifically for use in clean rooms by utilising suitable surface treatments and incorporating high performance seals in its design. Complete control of the tightening process is achieved by eliminating both under and over tightening as these tools incorporate torque leader's slipping mechanism. It is suitable for use by operators of any skill level, as this tool will repeatedly deliver the set torque without the need for operator intervention due to the tamper-proof design.
- Operator fatigue is minimised by the soft reset action of the tool
- ±6% accuracy
기술 사양
Torque Tool Style
Screwdriver
Torque Range N-m
4cN-m to 22cN-m
Drive Size - Imperial
0.25"
Product Range
-
Torque Range ft-lb
6in-oz to 32in-oz
Drive Size - Metric
6.35mm
Overall Length
104mm
SVHC
No SVHC (21-Jan-2025)
기술 문서 (1)
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Great Britain
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:82054000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:해당 없음
RoHS 프탈레이트 준수:해당 없음
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.07
