268014C

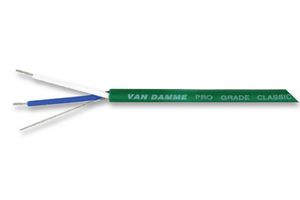

The 268014C is a 2-conductor shielded pro grade classic XKE mint Install Cable with bare silver-plated ultra-pure oxygen-free copper conductor of 24AWG wire gauge with green flexible PVC/neoprene composite jacket of 0.4mm thickness, 3.5mm diameter. This Install Cable is a foil screened twisted pair for installation and rack wiring. Tough, flexible and very easy to prepare as the foil screen is bonded to the outer jacket, this cable type is also useful for 'bodge leads', adaptor cables and multi-pin breakouts where individual tails need to be colour identified or are to be permanently installed.

• CPR: Not Yet Qualified
• <gt/>8N/mm² Tensile strength (jacket)
• <lt/>85Ω/km conductor resistance
• <lt/>85Ω/km screen resistance
• 50pF/m Core to core nominal capacitance

애플리케이션

Industrial

메모

Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
