제품 정보
| 제조업체 | VISHAY |
|---|---|
| 제조업체 부품 번호 | VS-403CNQ100PBF복사 |
| 제조업체 표준 리드 타임 | 14주 |
| 주문 코드 | 1611450 |
| Product Range | VS-40 |
| 기술 데이터 시트 | |
| Repetitive Peak Reverse Voltage | 100V |
| Average Forward Current | 400A |
| Forward Voltage Max | 690mV |
| Diode Module Configuration | Dual Common Cathode |

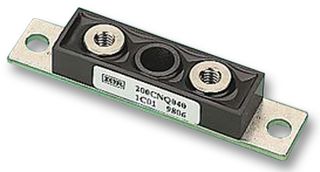

| Diode Case Style | TO-244 |
| No. of Pins | 3Pins |
| Operating Temperature Max | 175°C |
| Forward Surge Current | 25.5kA |
| Diode Mounting | Panel |
| Product Range | VS-40 |
| SVHC | To Be Advised |
제품 개요
The VS-403CNQ100PBF is a high performance Schottky Rectifier Module has been optimized for low reverse leakage at high temperature. The Q series Schottky rectifier has proprietary barrier technology allows for reliable operation up to 175°C junction temperature. The centre tap Schottky rectifier features low forward voltage drop, high frequency operation and guard ring for enhanced ruggedness and long term reliability.
- 1A Repetitive avalanche current per leg
- 5500pF Maximum junction capacitance per leg
- 5nH Typical series inductance per leg
- UL Approved
애플리케이션
Power Management, Industrial
기술 사양
| Repetitive Peak Reverse Voltage | 100V |
|---|---|
| Forward Voltage Max | 690mV |
| Diode Case Style | TO-244 |
| Operating Temperature Max | 175°C |
| Diode Mounting | Panel |
| SVHC | To Be Advised |
| Average Forward Current | 400A |
|---|---|
| Diode Module Configuration | Dual Common Cathode |
| No. of Pins | 3Pins |
| Forward Surge Current | 25.5kA |
| Product Range | VS-40 |
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | India 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85411000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | To Be Advised |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | .077111 |
