| 제조업체 | WELLER |
|---|---|
| 제조업체 부품 번호 | WR 2000D (UK + EU)복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2629086 |
| AKA | GTIN UPC EAN: 4003019422357 T0053379699N |
| 귀하의 부품 번호 | |
| 기술 데이터 시트 |
주문 가능
제조업체 표준 리드 타임: 12주
입고 시 알림 요청
| 수량 | 가격 |
|---|---|
| 1+ | ₩2,685,816 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩2,685,816
라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
제품 정보
| 제조업체 | WELLER |
|---|---|
| 제조업체 부품 번호 | WR 2000D (UK + EU)복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2629086 |
| AKA | GTIN UPC EAN: 4003019422357 T0053379699N |
| 기술 데이터 시트 | |
| Supply Voltage VAC | 230V |
| Heat Temperature Max | 550°C |
| Output Power | 300W |
| Kit Contents | WR2 Power Unit, DSX80 Desolder Iron with DSX 113HM Desolder Nozzle, WDH 30 Safety Rest |
| Product Range | - |
| Plug Type | EU, UK |
| SVHC | No SVHC (17-Dec-2015) |
제품 개요

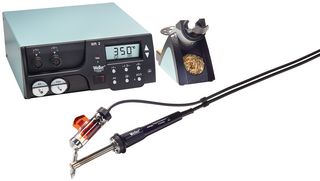

The 2 channels of the WR 2 power unit allow a soldering and desoldering tool or a soldering and hot air tool to be connected and operated simultaneously. In addition, to save on power consumption, an ECO function on the unit allows the tools to go into a 'sleep mode' when not in use.
- 2 independent tool channels with automatic tool recognition
- Simultaneous use of 2 tools (up to maximum 300W power rating of the unit)
- Weller Mirco-Tools are not connectable
- Will drive all Weller 200W soldering and desoldering irons
- Self contained vacuum and air turbine
- ECO button for "sleep mode"
- Programmable temperature memory key
- ESD safe
- Safety class: I & III
- Pump: maximum vacuum 0.7 bar
목차
Contents: WR 2 power unit, DSX80 desoldering pencil fitted with DSX 113HM nozzle and WDH 30 safety rest
기술 사양
| Supply Voltage VAC | 230V |
|---|---|
| Output Power | 300W |
| Product Range | - |
| SVHC | No SVHC (17-Dec-2015) |
| Heat Temperature Max | 550°C |
|---|---|
| Kit Contents | WR2 Power Unit, DSX80 Desolder Iron with DSX 113HM Desolder Nozzle, WDH 30 Safety Rest |
| Plug Type | EU, UK |
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Mexico 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85151990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (17-Dec-2015) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 9 |
