더 필요하세요?
| 수량 | 가격 |
|---|---|
| 1+ | ₩5,437,844 |
제품 정보
| 제조업체 | WELLER |
|---|---|
| 제조업체 부품 번호 | WR 3000M ER복사 |
| 제조업체 표준 리드 타임 | 12주 |
| 주문 코드 | 2629091 |
| Product Range | WR 3M |
| AKA | GTIN UPC EAN: 4003019428588 T0053368870N, WR 3000M ER |
| 기술 데이터 시트 | |
| Supply Voltage VAC | 230V |
| Heat Temperature Max | 550°C |
| Output Power | 400W |

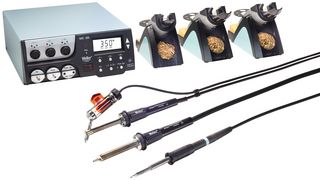

| Kit Contents | WR3M Power Supply, HAP 200 Hot Air Pencil with WDH 30 Safety Rest, DSX 120 Desoldering Iron with WDH 30 Safety Rest, WP 120 Soldering Iron with WDH 10 Stop + Go Safety Rest |
| Product Range | WR 3M |
| Plug Type | EU, UK |
| SVHC | No SVHC (04-Feb-2026) |
제품 개요
Precise temperature control performance at the soldering tip is guaranteed by the digital control electrotechnology together with superior- quality sensor and heat-transfer technology. High-speed measured-value acquisition provides for maximum temperature precision and optimum dynamic temperature performance in load situations.
- 400 watts of power over 3 independently controlled channels
- Air and vacuum ports allow the use of up to 3 tools simultaneously
- Compatible with high speed micro tools WMRP and WMRT
- New HAP200 200 watt hot air pencil for efficient lead-free rework
- USB port allows the use of included PC software for data logging
- WRK desoldering set allows components removal up to 30 x 30mm
- WVP vacuum pen allows easy handling of components
- Large, intuitive LCD display shows critical functions for 3 channels
애플리케이션
Maintenance & Repair
목차
WR 3M repair station, HAP 200 Hot-air pencil with WDH 30 Safety rest, DSX 80 Desoldering iron with WDH 30 safety rest and WP 80 soldering iron with WDH 10 Stop + go Safety rest.
기술 사양
| Supply Voltage VAC | 230V |
|---|---|
| Output Power | 400W |
| Product Range | WR 3M |
| SVHC | No SVHC (04-Feb-2026) |
| Heat Temperature Max | 550°C |
|---|---|
| Kit Contents | WR3M Power Supply, HAP 200 Hot Air Pencil with WDH 30 Safety Rest, DSX 120 Desoldering Iron with WDH 30 Safety Rest, WP 120 Soldering Iron with WDH 10 Stop + Go Safety Rest |
| Plug Type | EU, UK |
기술 문서 (1)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
| 원산지: 최종후의 중요 제조 공정이 이루어진 국가원산지: | Mexico 최종후의 중요 제조 공정이 이루어진 국가 |
|---|---|
| 관세 번호: | 85151990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS 준수: | 예 RoHS |
| RoHS 프탈레이트 준수: | 예 RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| 제품 준수 증명서 다운로드 | 제품 준수 증명서 |
| 무게(kg): | 4.53592 |
