2605056083001

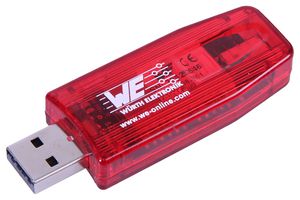

The AMB8465-M is based on the Wireless M-Bus radio module AMB8425-M providing a plug+play PC communications link via USB interface. The USB adapter operates in 12 channels in the 868 MHz frequency band. The Wireless M-Bus standard (EN13757-4:2005) specifies the communication between water, gas, heat and electricity meters and concentrators. The standard comprises various operating modes (S, T and R) to meet the requirements of one-way and two-way data communication in stationary and mobile systems. By using the USB adapter AMB8465-M, PCs or mobile terminals (such as service terminals) can now easily communicate with wireless M-Bus meters, data concentrators and multi utility control systems (MUCs). The USB adapter fits perfectly as a test + service tool for installations of wireless M-Bus meters or for maintenance work.

• Wireless M-Bus interface for PCs and mobile terminals via USB
• Range up to 100m
• Communication via virtual COM port
• Wireless M-Bus according to EN13757-4:2005 standard
• OMS (Open Metering System) standard supported
• All operating modes (S, T, R) supported
• Easy switching between modes S1, S1m, S2, T1, T2, R2
• Conforms with EU R&TTE 1999/5/EC directive

애플리케이션

Communications & Networking
