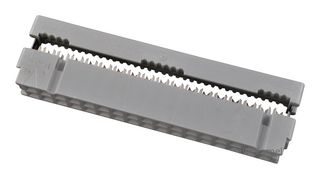

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
제조업체3M
제조업체 부품 번호3417-7600
주문 코드2672350
Product Range3000 Series
AKAGTIN UPC EAN: 00054007336457 80610120992
기술 데이터 시트
더 이상 재고 없음
제품 정보
제조업체3M
제조업체 부품 번호3417-7600
주문 코드2672350
Product Range3000 Series
AKAGTIN UPC EAN: 00054007336457 80610120992
기술 데이터 시트
IDC Connector TypeIDC Receptacle
Contact GenderFemale
Pitch Spacing2.54mm
No. of Rows2 Row
No. of Contacts40Contacts
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product Range3000 Series
SVHCNo SVHC (20-Jun-2016)
제품 개요
The 3417-7600 is a 40-way 0.100 x 0.100-inch Wiremount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wiremount socket has closed end cover, military polarization with centerbump and no strain relief.
- Grey color
- Open or closed end covers available
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- 1 x 10⁹Ω at 500VDC Insulation resistance
애플리케이션
Industrial
기술 사양
IDC Connector Type
IDC Receptacle
Pitch Spacing
2.54mm
No. of Contacts
40Contacts
Contact Material
Copper Alloy
Product Range
3000 Series
Contact Gender
Female
No. of Rows
2 Row
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (20-Jun-2016)
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:United States
최종후의 중요 제조 공정이 이루어진 국가
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (20-Jun-2016)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.004536
