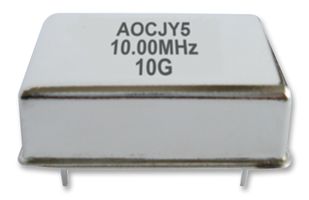

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
더 이상 재고 없음
제품 정보
제조업체ABRACON
제조업체 부품 번호AOCJY5-10.000MHZ
주문 코드2251758
Product RangeAOCJY5
기술 데이터 시트
Frequency Nom10MHz
Frequency Stability + / -50ppb
Oscillator Output CompatibilitySinewave
Oscillator CaseThrough Hole, 36.1mm x 27.2mm
Supply Voltage Nom12V
Product RangeAOCJY5
Operating Temperature Min-55°C
Operating Temperature Max85°C
SVHCNo SVHC (23-Jan-2024)
제품 개요
The AOCJY5 series oven controlled Crystal Oscillator works at frequency range of 10MHz. It is suitable for use in cellular infrastructure, radar systems, GPS tracking with precision hold-over accuracy, WiMax and WLAN applications.
- SC-cut, high Q resonator based design
- Sinewave output into 50Ω
- Available with ±50ppb accuracy over -55 to 85°C temperature range
- Exceptional long-term aging of ±500ppb over 10-year product life
- Excellent close-in phase noise
애플리케이션
Aerospace, Defence, Military, Clock & Timing, Communications & Networking, Wireless, Test & Measurement, RF Communications, Industrial
기술 사양
Frequency Nom
10MHz
Oscillator Output Compatibility
Sinewave
Supply Voltage Nom
12V
Operating Temperature Min
-55°C
SVHC
No SVHC (23-Jan-2024)
Frequency Stability + / -
50ppb
Oscillator Case
Through Hole, 36.1mm x 27.2mm
Product Range
AOCJY5
Operating Temperature Max
85°C
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85423190
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (23-Jan-2024)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.02
