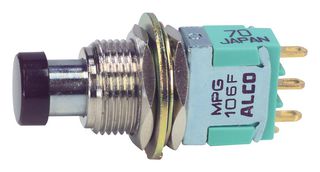

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
주문 가능
제조업체 표준 리드 타임: 26주
입고 시 알림 요청
수량 | 가격 |
---|---|
1+ | ₩55,651 |
5+ | ₩51,829 |
10+ | ₩48,007 |
20+ | ₩47,047 |
가격기준Each
주문 최소수량: 1
주문 배수수량: 1
₩55,651
부품 번호 /라인 메모 추가
이 주문에 한해 주문 확인서, 청구서, 발송장에 추가됨,
이 번호는 주문 확인서, 청구서, 발송장, 웹 확인 이메일, 제품 라벨에 추가됩니다.
제품 정보
제조업체 부품 번호MPG406N
주문 코드2787219
Product RangeMPG
기술 데이터 시트
Product RangeMPG
Panel Cutout Diameter11.9mm
Contact Configuration4PDT
Switch OperationOn-On
Pushbutton Actuator StyleRound
Actuator / Cap ColourBlack
Contact Current AC Max6A
Contact Voltage VAC125V
Contact Current DC Max4A
Contact Voltage VDC28V
IP Rating-
Switch MountingPanel Mount
Switch TerminalsSolder Lug
Illumination ColourNon Illuminated
Panel Cutout (H x W)-
제품 개요
The MPG series green Pushbutton Switch with break-before-make contact timing. The life expectancy depending on function (momentary or push on push off) and number of poles from 40,000 up to 80,000 cycles at full load this is accomplished due to silver slugs in the contact area. In addition to the silver slugs all contact surfaces are gold flashed this inhibits oxidation and also offers a very low initial contact resistance. The design also includes over-moulded terminals which eliminate any voids which is possible with epoxy sealed terminals.
- Contact configuration SPDT, DPDT, 3PDT, 4PDT
- Wire lug, PC terminals, right angle and vertical right angle offered
- Very robust actuator
- Entire series with over-moulded terminals
- Actuator guards, decorative hardware and silicone boot seals available
애플리케이션
Aerospace, Defence, Military, Commercial, Medical, Industrial, Sensing & Instrumentation
기술 사양
Product Range
MPG
Contact Configuration
4PDT
Pushbutton Actuator Style
Round
Contact Current AC Max
6A
Contact Current DC Max
4A
IP Rating
-
Switch Terminals
Solder Lug
Panel Cutout (H x W)
-
Panel Cutout Diameter
11.9mm
Switch Operation
On-On
Actuator / Cap Colour
Black
Contact Voltage VAC
125V
Contact Voltage VDC
28V
Switch Mounting
Panel Mount
Illumination Colour
Non Illuminated
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:Y-Ex
RoHS
RoHS 프탈레이트 준수:예
RoHS
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.019407
