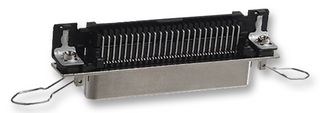

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
더 이상 재고 없음
제품 정보
제조업체 부품 번호5555149-1
주문 코드2452362
Product RangeCHAMP
기술 데이터 시트
No. of Contacts50Contacts
GenderReceptacle(관련 커넥터 보기)
Connector TypeI/O
Contact Termination TypeThrough Hole
Product RangeCHAMP
Connector MountingPCB Mount
Contact PlatingGold Plated Contacts
Contact MaterialCopper Alloy
SVHCNo SVHC (17-Jan-2023)
제품 개요
- Receptacle PCB D-sub connector
- 50 number of position, right angle PCB mount orientation
- Black primary product colour, zinc shield material
- Nickel over copper shield plating material, copper alloy contact base material
- Gold contact mating area plating material, 30µin contact mating area plating material thickness
- 3.5A maximum current rating, polyester GF housing material
- Operating temperature range from -40 to 105°C
기술 사양
No. of Contacts
50Contacts
Connector Type
I/O
Product Range
CHAMP
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (17-Jan-2023)
Gender
Receptacle
Contact Termination Type
Through Hole
Connector Mounting
PCB Mount
Contact Material
Copper Alloy
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (17-Jan-2023)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.04
