MAX149X2EVKIT#

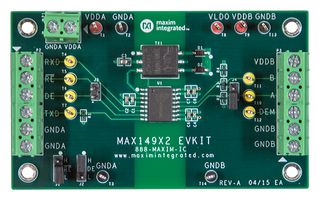

MAX149X2EVKIT# is a MAX149X2 evaluation kit (EV kit). It is a fully assembled and tested PCB that demonstrates the functionality of the MAX14943 isolated RS-485/PROFIBUS transceiver. The EV kit operates from a single 3.3V supply and features an on-board isolated power supply to power the secondary-side of the circuit. The MAX149X2 EV kit comes with the MAX14943GWE+ installed, but can also be used to evaluate the pin-compatible MAX14940, MAX14946, and MAX14949 ICs. Applications include HVAC, industrial automation equipment, power meters, programmable logic controllers.

• Operates from a single 3.3V supply
• Terminal block connectors for easy RS-485/ PROFIBUS evaluation
• 5000VRMS isolation for 60s
• Fully assembled and tested
• Proven PCB layout
