MAX32680EVKIT#

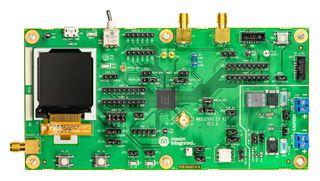

MAX32680 evaluation kit (EV kit) provides a platform for evaluation capabilities of the MAX32680 microcontroller, which is an advanced system-on-chip (SoC) designed for industrial and medical sensors. Power regulation and management is provided by a single-inductor multiple-output (SIMO) buck regulator system and contains the latest generation Bluetooth® 5.2 Low Energy (LE) radio.

• SMA Connector for Attaching an External Bluetooth Antenna
• 128 x 128 (1.45in) colour TFT display with SPI interface
• Two selectable on-board, high-precision voltage references
• USB 2.0 micro B to serial UARTs, UART1 and LPUART0 interface is selectable through on-board jumpers
• All GPIOs signals accessed through 0.1in headers
• Access to four analogue inputs through SMA connectors configured as differential
• Access to eight analogue inputs through 0.1in headers configured as single-end
• Optional discrete filter for the twelve analogue inputs
• DAC accessed through SMA connector or test point
• 10-Pin SWD Connector, 10-Pin RV JTAG Connector, Board Power Provided by USB Port

목차

MAX32680 EV kit containing a MAX32680 with a preprogramed demo, MAX32625PICO debugger w/cables, One USB standard-A-to-micro-B cable.

메모

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
