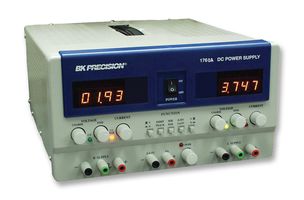

BK1760A

BK1760A is a triple output DC power supply. It offers three independent outputs with coarse and fine adjustment knobs for volts. The 4-digit LED display offers 10mV and 1mA resolution, providing the capability to set voltage and current values more accurately than 3-digit displays found in most comparable power supplies.

• Constant voltage (CV) and constant current (CC) operation
• Independent or series tracking/parallel mode operation to double voltage or current
• Coarse and fine voltage controls, adjustable current limiting
• Overvoltage protection and reverse polarity protection
• Designed to operate continuously at rated output
• cULus recognised
• 0-30V (A & B)/4-6.5V (C) output voltage, 0-2A (A & B)/5A (C) output current
• 100µs recovery time
• Two 4-digit LED display, operating temperature range from 0° to 40°C ≤ 85% RH
• Dimensions (W x H x D) is 267 x 145 x 381mm

목차

Power supply, User manual, spare fuse, Power cord.

메모

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
