HPS20K800-400V

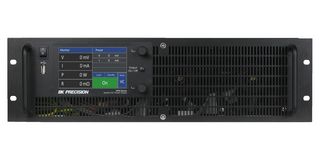

HPS20K800-400V is a 800V / 25A / 20KW HPS series programmable DC power supply. It provides 20KW of clean output power and high efficiency in a compact 3U form factor. The 5-inch touchscreen offers intuitive control while displaying both set and measured values including simulated internal resistance. The script function enables the power supply to output a sequence of user-defined voltage/current steps based on a set of written commands. Additionally, built-in protection features including under voltage protection help prevent damage to the power supply and the device under test. Adjustable voltage/current slew rates and configurable output on/off timer functions enhance user control. LabVIEW drivers are provided to simplify instrument control from a PC. Output voltage and current can be logged directly to a USB flash drive.

• 3-phase 400VAC input rating, efficiency up to 94%
• Built-in voltage and current measurement, configurable voltage and current rise time
• Host/server mode provides up to 160KW of output power with 8 units connected in parallel
• Galvanically isolated analogue control and monitoring interface
• OVP, OCP, OPP, UVP (under voltage protection), and key lock function
• Fast transient response time is greater than 3ms
• Thermostatically-controlled fans help minimize noise
• Simulate the output of photovoltaic arrays
• Remote sense to compensate for voltage drop, datalogging directly to a USB flash drive
• Output on/off timer, RS232 and LAN interfaces

목차

DC power supply, Test report, Certificate of calibration.
