9843 060100

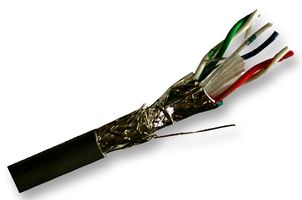

The 9843 060100 is a 100ft 3-pair 24AWG shielded low capacitance Computer Cable with stranded (7 x 32) tinned copper conductors, polyethylene insulation, overall Beldfoil® aluminium foil-polyester tape (100% coverage) + tinned copper braid shield (90% coverage) and chrome PVC jacket. This multi-conductor cable deliver low voltage analogue data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-485 applications.

• CPR: Not Yet Qualified
• 120Ω Impedance
• 12.8pF/ft Conductor to conductor nominal capacitance
• 23pF/ft Conductor to other conductor and shield nominal capacitance
• 24Ω/1000ft at 20°C Nominal conductor DC resistance
• 2.3Ω/1000ft at 20°C Nominal outer shield DC resistance
• UL1685 Flammability

애플리케이션

Computers & Computer Peripherals
