EVALKIT-UPE-1X-M-M1-8

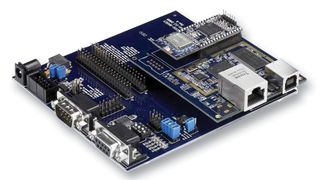

EVALKIT-UPE-1X-M-M1-8 is a USB/Ethernet gateway module for Cy-Net3. It provides back channel connectivity, linking the RF network to a monitoring and control centre via the internet but also with USB peripheral capability and a memory card connector. It has high pin count connectors that allows user access to many of the peripherals of the MCU and is footprint compatible with USB/Ethernet production ready module. A development carrier board can be used to provide power and communications / debug interfaces to the module.

• ECOG1X14Z5 MCU
• MCOG-RF-1X-M1 Cy-Net module
• SD/SDHC/MMC socket
• 100base-T ethernet PHY ad RJ45 connector
• 433, 868, 915MHz ISM band frequencies
• Preprogrammed MAC address and serial number
• RadioWire programmable FSK transceiver module
• Connector arranged for easy panel mounting
• Code security feature for MCU
• GNU C Compiler/Debugger, Eclipse IDE

애플리케이션

Metering, Wireless, Communications & Networking, Industrial, Sensing & Instrumentation, Security, Building Automation

목차

Module, Base board, Dongle, Cables, CD.
