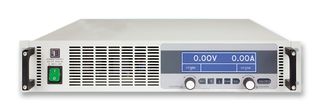

EA-PS 9080-120 2U

EA-PS 9080-120 2U is a microprocessor controlled laboratory power supply. The clearly arranged control panel features two rotary knobs, six pushbuttons and two LEDs. Together with a colour TFT display for all values and status it simplifies the use of the device.

• Wide AC supply voltage range from 90 to 264V with active PFC
• Voltage range from 0 to 80V, current range from 0 to 120A
• Power range from 0 to 3000W
• 92% efficiency
• Flexible power regulated output stage
• Various protection circuits(OVP, OCP, OPP, OTP)
• Control panel with pushbuttons and colour TFT for actual values, set values, status and alarms
• Galvanically isolated analogue interface and USB port
• EMC according to EN 55022 class B
• LabView Vis and control software for Windows

메모

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
