DEMOBOARDTLF42772ELTOBO1

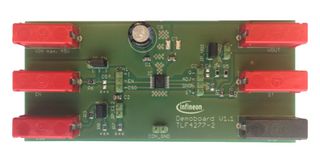

DEMOBOARDTLF42772ELTOBO1 is a TLE4277-2EL demoboard that allows evaluation of the TLF4277-2EL in the PG-SSOP-14 EP package. It can also be used to evaluate the package independent parameters of the TLF4277-2LD. This demoboard enables evaluation of Infineon’s latest high performance automotive antenna LDOs with integrated current sense. The TLE4277-2EL has been designed for all ECUs connected to the battery within the infotainment automotive application that need a current sense for active antenna diagnostics. The demoboard allows for an easy plug-and-play solution to evaluate the TLE4277-2EL with all necessary external components already mounted on the board. Suitable for automotive antenna supply and all other automotive applications which need a current sense.

• Plug-and-play evaluation capability
• Easy verification and configuration
• Enable, current sense, overtemperature shutdown, output current limitation
• Adjustable output voltage
• AEC-Q100 qualified
• Demonstrate the capabilities of TLF4277-2EL and TLF4277-2LD
• Save design time
• Allow easy application adaption for evaluation
