페이지 인쇄

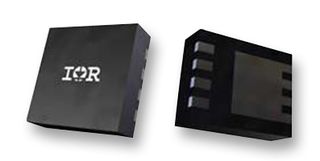

이미지는 참고용으로만 제공됩니다. 자세한 내용은 제품 설명을 참조하세요.
제품 정보
제조업체INFINEON
제조업체 부품 번호IRLHS6376TRPBF
주문 코드2579953RL
Product RangeHEXFET Series
AKASP001573000
기술 데이터 시트
Channel TypeN Channel
Transistor PolarityN Channel
Drain Source Voltage Vds30V
Drain Source Voltage Vds N Channel30V
Continuous Drain Current Id3.6A
Drain Source Voltage Vds P Channel30V
Continuous Drain Current Id N Channel3.6A
On Resistance Rds(on)0.048ohm
Continuous Drain Current Id P Channel3.6A
Transistor MountingSurface Mount
Drain Source On State Resistance N Channel0.048ohm
Rds(on) Test Voltage4.5V
Drain Source On State Resistance P Channel0.048ohm
Transistor Case StyleDFN2020
Gate Source Threshold Voltage Max800mV
No. of Pins8Pins
Power Dissipation Pd1.5W
Power Dissipation N Channel1.5W
Power Dissipation P Channel1.5W
Operating Temperature Max150°C
Product RangeHEXFET Series
Qualification-
Automotive Qualification Standard-
MSLMSL 1 - Unlimited
SVHCNo SVHC (21-Jan-2025)
기술 사양
Channel Type
N Channel
Drain Source Voltage Vds
30V
Continuous Drain Current Id
3.6A
Continuous Drain Current Id N Channel
3.6A
Continuous Drain Current Id P Channel
3.6A
Drain Source On State Resistance N Channel
0.048ohm
Drain Source On State Resistance P Channel
0.048ohm
Gate Source Threshold Voltage Max
800mV
Power Dissipation Pd
1.5W
Power Dissipation P Channel
1.5W
Product Range
HEXFET Series
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
Transistor Polarity
N Channel
Drain Source Voltage Vds N Channel
30V
Drain Source Voltage Vds P Channel
30V
On Resistance Rds(on)
0.048ohm
Transistor Mounting
Surface Mount
Rds(on) Test Voltage
4.5V
Transistor Case Style
DFN2020
No. of Pins
8Pins
Power Dissipation N Channel
1.5W
Operating Temperature Max
150°C
Qualification
-
MSL
MSL 1 - Unlimited
관련 제품
2개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Thailand
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Thailand
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85412900
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (21-Jan-2025)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.0001
