TLE5014SPEVALKITTOBO1

TLE5014SPEVALKITTOBO1 is a XENSIV™ - TLE5014SP evalkit features the SPI interface of the digital GMR angle sensor. The evaluation kit enables a quickly and thoroughly evaluation of the TLE5014 GMR based angle sensor. An evaluation kit consists of a programmer including a microcontroller with a shield and a satellite board. Additionally to the hardware, a graphical user interface (GUI) is available to interact with the sensor. The connection between the evaluation kit and a PC requires a Micro-USB cable. The TLE5014 satellite board, this satellite board embeds a TLE5014SP16D. It provides a dual-die top/ bottom configuration. The TLE5014SP16D is using the SSC interface to communicate with the microcontroller. A 3D printed rotation knob incorporates a magnet, the whole can be placed on the board to enable fast prototyping and evaluation.

• Features the TLE5014SP16D (SSC interface)
• Evaluation kit includes a GUI software

목차

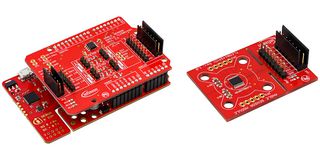

Programmer & satellite board.
