TLS820B2ELVSEBOARDTOBO1

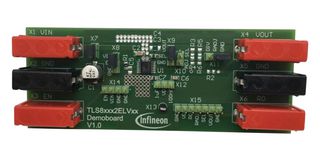

TLS820B2ELVSE demo board enables evaluation of Infineon’s latest high performance automotive LDOs with ultra-low quiescent current. The TLS820B2ELVSE has been designed for all ECUs connected to the battery within the automotive application specifically body control modules and HVAC that only need an enable feature. The ultra-low quiescent current of typically 20µA helps Tier1s meet OEM imposed current consumption restrictions on the ECU level. The demo board allows for an easy plug and plan solution to evaluate the TLS820B2ELVSE with all necessary external components already mounted on the board. The TLS820B2ELVSE has a selectable output voltage where, by connecting the SEL pin to either device input or GND, configures the device as a 5V or a 3.3V output regulator. The demo board can also be used to evaluate the function of the SEL pin.

• Plug and play evaluation capability
• Easy verification and configuration
• Enable, overtemperature shutdown, output current limitation
• Selectable output voltage between 5V and 3.3V without use of external components
• AEC-Q100 qualified
• Save design time
• Allow easy application adaption for evaluation
• Used in automotive general ECUs (BCM, HVAC), secondary supply in ECU (e.g. for CAN)
• Also used in dashboard, cluster, climate control
• Output voltage range from 3.3V to 5V, supply voltage range from 3 to 40V
