AC162051

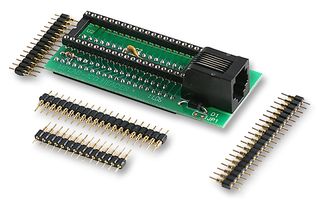

AC162051 is a MPLAB ICD 40 pin header interface allows direct replacement of debug target. A handy device that plugs into the existing 40 pin DIP socket on the development board where a FLASH based microcontroller would be. It breaks the connection to RB5, RB6 and RB7, which are then connected to the standard MPLAB ICD connector. This provides access for immediate in-circuit debugging without having accommodating hardware on user board. The MPLAB ICD Header provides a means of connecting the MPLAB ICD 2 Module to a target board that does not incorporate a 6 wire modular connection into its design.

애플리케이션

Embedded Design & Development
