0932-0-15-20-77-14-11-0

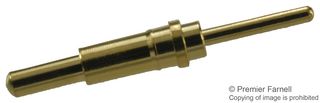

The 0932-0-15-20-77-14-11-0 from Mill Max is a through hole mount standard stroke discrete spring loaded pin contacts. It features a 0.045" mid-stroke and 0.090" maximum stroke, endurance of 1,000,000cycles and a rated current of 2A continuous use (3A peak).

• Long stroke, solder mount in 0.029 minimum mounting hole
• Force at mid stroke is 60g
• Initial force (pre-load) is 25g
• Gold plated beryllium copper spring
• Copper alloy with gold finish sleeve & plunger material
• Maximum contact resistance is 20mohm
• Operating temperature range from -55°C to +125°C
