제품 정보
제조업체MOLEX
제조업체 부품 번호08-70-0058
주문 코드2358064
Product RangeSPOX 5103
AKA5103PBT, GTIN UPC EAN: 800753534797
기술 데이터 시트
Product RangeSPOX 5103
Contact GenderSocket
Contact Termination TypeCrimp
Wire Size AWG Max22AWG
Contact PlatingTin Plated Contacts
For Use WithMolex 5102 & Mini-SPOX 5207 Series Housing Connectors
Wire Size AWG Min28AWG
Contact MaterialPhosphor Bronze
SVHCNo SVHC (17-Jan-2022)
08-70-0058의 대체 제품
2개 제품을 찾았습니다.
제품 개요

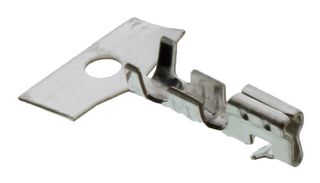

The 08-70-0058 is a SPOX™ female crimp terminal made of phosphor bronze with tin-plated finish. It can be used with 5102 the crimp and 5207 mini SPOX housing. It accepts 22 to 28AWG wire. The unique low-profile design of the SPOX blind-mate interface (BMI) allows for a mated stack distance of only 11mm. Utilizing proven SPOX-style contacts for high reliability, the products are suitable for situations requiring highly reliable tin interfaces.
- Current rating per contact is 3A
- Voltage (maximum) is 250V
애플리케이션
Automotive, Communications & Networking, Consumer Electronics, Industrial, Medical
기술 사양
Product Range
SPOX 5103
Contact Termination Type
Crimp
Contact Plating
Tin Plated Contacts
Wire Size AWG Min
28AWG
SVHC
No SVHC (17-Jan-2022)
Contact Gender
Socket
Wire Size AWG Max
22AWG
For Use With
Molex 5102 & Mini-SPOX 5207 Series Housing Connectors
Contact Material
Phosphor Bronze
관련 제품
6개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:South Korea
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:South Korea
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:예
RoHS
SVHC:No SVHC (17-Jan-2022)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.000163
