더 필요하세요?
수량 | 가격 |
---|---|
1+ | ₩2,105 |
15+ | ₩1,947 |
100+ | ₩1,841 |
500+ | ₩1,370 |
1000+ | ₩1,298 |
제품 정보
제품 개요

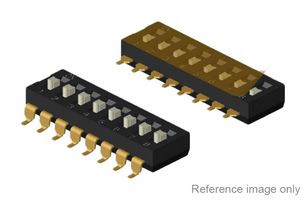

MP-DM-08-V-T/R is an 8-position DIP switch. Typical applications include industrial control, automatic machine control and telecommunication. With multiple individual switches packaged together in a single housing, each switch within the package can be independently toggled between its ON and OFF positions, allowing for multiple configuration options within a single unit. Its versatility makes it a popular choice for designers and engineers seeking to incorporate user-configurable options into Its products.
- Low profile for space saving
- Gold contact for high reliability
- Top tape type for washing process
- 25mA, 24VDC contact rating
- 50mohm maximum contact resistance, 100Mohm minimum insulation resistance at 500VDC
- 1000gf maximum operating force, 1mm travel
- 2000 cycles operating life, -20°C to +85°C operating temperature
- High temperature thermoplastic nylon UL 94V-0 cover
- High temperature thermoplastic LCP UL 94V-0 actuator
- Alloy copper contact (gold plated at contact area)
애플리케이션
Industrial, Power Supplies, Automation & Process Control, Computer Peripherals
목차
x1 DIP switch, SMD.
메모
Versatile and cost-effective solution for a variety of applications.
기술 사양
8Circuits
Surface Mount
24V
MP DIP/SIP Switches
No SVHC (21-Jan-2025)
Raised Slide
SPST-NO
25mA
DIP Unsealed
기술 문서 (1)
법률 및 환경
최종후의 중요 제조 공정이 이루어진 국가원산지:China
최종후의 중요 제조 공정이 이루어진 국가
RoHS
RoHS
제품 준수 증명서
