PRN.000.006

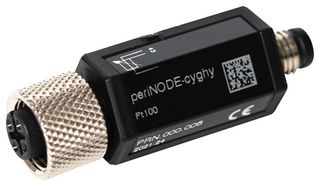

PRN.000.006 is a periNODE smart adapter that connects directly to sensors with Pt100 3-wire signal output and M12 A-coded 4-pin connectors. It turns the analogue, passive sensor into a smart, active network participant that delivers digital data including physical unit via ethernet to any IT system or data hub for further processing and analytics. periNODE permits the configuration of data communication intervals to meet user-specific demand, thereby reducing network traffic and redundant data collection. periNODE Pt100 facilitates a wide variety of IoT and IIoT use cases.

• IPv6 TCP/UDP connectivity
• HTTP-Server hosting web-GUI with sensor values and configuration page
• RESTful API for access to sensor values and configuration
• Sensor value via MQTT
• Zeroconf networking: mDNS resolving unique periNODE-hostname
• Zeroconf networking: DNS service discovery for https service
• Security through end-to-end encryption
• 100BASE-T1 Single Pair Ethernet (IEEE 802.3bw) communication
• 24VDC input power
• IP67 protection class and temperature range from -0°C to +70°C
