PQ359

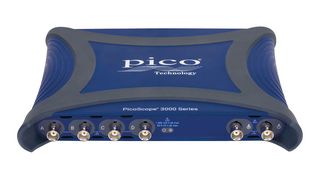

PQ359 is a PicoScope 3416E oscilloscope. It is a USB-C powered PC oscilloscope with 200MHz bandwidth, 5GS/s sampling rate, 2GS ultra-deep capture memory, and 4 analogue channels. Supported by the advanced PicoScope 7 Test and Measurement software, it enables the rapid, cost-effective debugging and performance validation of complex analogue and power electronic designs. It also offers an ideal package for many other applications, including embedded systems design, research, testing, education, service and repair.

• 200MHz bandwidth, 4 analogue channel
• 10-bit resolution (14 bits using enhanced resolution)
• Function/arbitrary waveform generator included
• Compact, portable and USB powered
• 40 serial protocol decoders included as standard
• Segmented memory, persistence and fast waveform updates
• Advanced math, measurements, masks and digital triggering
• PicoScope 7 software for Windows, Mac and Linux with free updates
• Support for LabView, MATLAB and writing your own code
• 5-year warranty

목차

Oscilloscope, TA532 1.8m USB-C to USB-C cable, TA534 0.9m USB-A to USB-C cable, PS017 USB-C power supply, with UK, EU, US and AUS plugtops, User's guide.
