제품 정보
제조업체POMONA
제조업체 부품 번호2948-36-0
주문 코드2406062
Product Range2948 Series
기술 데이터 시트
Test Connector Type A4mm Stackable Banana Plug
Test Connector Type B4mm Stackable Banana Plug
Lead Length - Imperial36"
Lead Length - Metric914mm
Insulator ColourBlack
Current Rating15A
Voltage Rating60VDC
Product Range2948 Series
SVHCNo SVHC (15-Jun-2015)
제품 개요

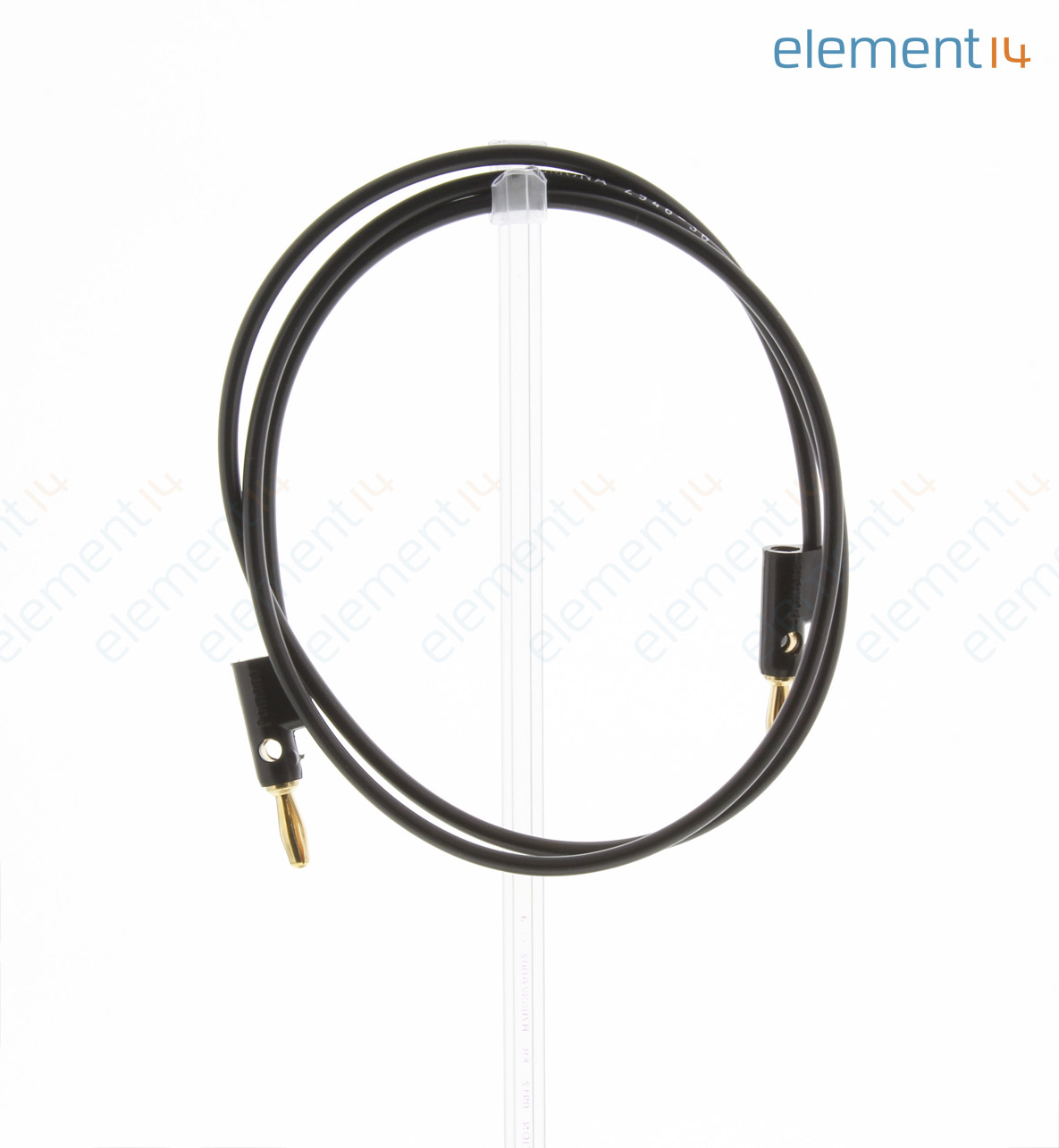

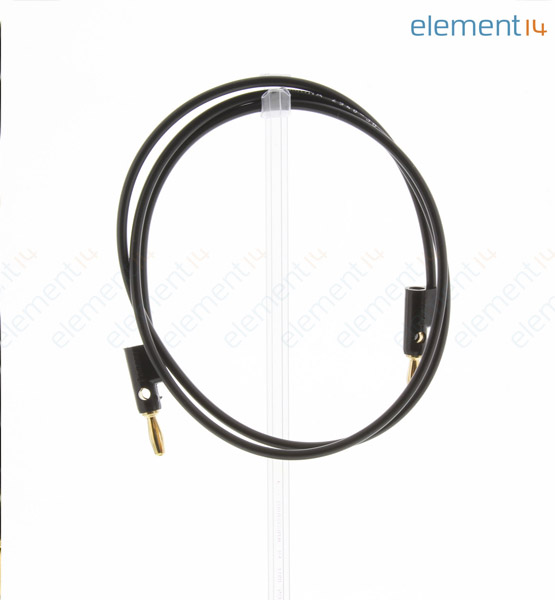

The 2948-36-0 is a Test Lead with stacking standard banana plug each end. The stacking banana plug has gold-plated brass body, gold-plated beryllium copper spring, accepts 18AWG PVC insulated wire, polypropylene insulation moulded to plug body and wire.
- Multiple stacking feature accommodates the most complex stacking, keeps circuitry neater
- Greatly simplifies circuit connections and changes
- Reliable solder bonded connections withstand pull test in excess of 50lbs
- Vertical and cross stackable
- Mates to model #1581, 2854 or any standard banana jack
애플리케이션
Test & Measurement, Aerospace, Defence, Military
기술 사양
Test Connector Type A
4mm Stackable Banana Plug
Lead Length - Imperial
36"
Insulator Colour
Black
Voltage Rating
60VDC
SVHC
No SVHC (15-Jun-2015)
Test Connector Type B
4mm Stackable Banana Plug
Lead Length - Metric
914mm
Current Rating
15A
Product Range
2948 Series
기술 문서 (1)
2948-36-0의 대체 제품
3개 제품을 찾았습니다.
관련 제품
1개 제품을 찾았습니다.
법률 및 환경
원산지:
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
최종후의 중요 제조 공정이 이루어진 국가원산지:Taiwan
최종후의 중요 제조 공정이 이루어진 국가
관세 번호:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS 준수:예
RoHS
RoHS 프탈레이트 준수:추후 공고함
SVHC:No SVHC (15-Jun-2015)
제품 준수 증명서 다운로드
제품 준수 증명서
무게(kg):.032
